Custom Single Arm Street Light Pole
Technical Data
| Product Name | Custom Single Arm Street Light Pole | ||||||
| Material | Commonly Q345B/A572, Q235B/A36, Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, ST52 | ||||||
| Height | 5M | 6M | 7M | 8M | 9M | 10M | 12M |
| Dimensions(d/D) | 60mm/150mm | 70mm/150mm | 70mm/170mm | 80mm/180mm | 80mm/190mm | 85mm/200mm | 90mm/210mm |
| Thickness | 3.0mm | 3.0mm | 3.0mm | 3.5mm | 3.75mm | 4.0mm | 4.5mm |
| Flange | 260mm*14mm | 280mm*16mm | 300mm*16mm | 320mm*18mm | 350mm*18mm | 400mm*20mm | 450mm*20mm |
| Tolerance of dimension | ±2/% | ||||||
| Minimum yield strength | 285Mpa | ||||||
| Max ultimate tensile strength | 415Mpa | ||||||
| Anti-corrosion performance | Class II | ||||||
| Against earthquake grade | 10 | ||||||
| Color | Customized | ||||||
| Surface treatment | Hot-dip Galvanized and Electrostatic Spraying, Rust Proof, Anti-corrosion performance Class II | ||||||
| Shape Type | Conical pole, Octagonal pole,Square pole, Diameter pole | ||||||
| Arm Type | Customized: single arm,double arms,triple arms,four arms | ||||||
| Stiffener | With big size to strength the pole to resist the wind | ||||||
| Powder coating | Thickness of powder coating is 60 -100um. Pure polyester plastic powder coating is stable and with strong adhesion & strong ultraviolet ray resistance. The surface is not peeling even with blade scratch (15×6 mm square). | ||||||
| Wind Resistance | According to local weather condition, General design strength of wind resistance is ≥150KM/H | ||||||
| Welding Standard | No crack, no leakage welding, no bite edge, weld smooth level off without the concavo-convex fluctuation or any welding defects. | ||||||
| Hot-Dip Galvanized | Thickness of hot-galvanized is 60 -100um. Hot Dip Inside and outside surface anti-corrosion treatment by hot dipping acid. which is in accord with BS EN ISO1461 or GB/T13912-92 standard. Designed life of pole is more than 25 years, and the galvanized surface is smooth and with the same color. Flake peeling hasn't been seen after maul test. | ||||||
| Anchor bolts | Optional | ||||||
| Material | Aluminium,SS304 is available | ||||||
| Passivation | Available | ||||||
Product Description
Customized single-arm street lamp poles are high-performance infrastructure specially designed to meet the diverse urban lighting needs. The core advantage of our factory lies in its ability to carry out all-round customized production based on the actual application scenarios, functional requirements and aesthetic standards of customers. From material strength to appearance design, from functional integration to installation compatibility, each lamp post is guided by precise engineering, providing efficient lighting and intelligent upgrade hardware support for urban roads, squares, parks and other scenarios.
High Strength material selection : A variety of materials such as Q235 carbon steel, 6063 aluminum alloy, stainless steel, etc. are provided to meet the requirements of wind resistance, shock resistance and corrosion resistance in different climate conditions.
Surface treatment process : Optional hot-dip galvanizing, powder coating or fluorocarbon coating, supports RAL international color card custom, ensures more than 10 years of weather resistance.
Structural parameters CUSTOM : Pole height (6-15 m), arm length (1-5 m), arm tilt Angle (0°-15°) adjustable to fit different road widths and lighting coverage.
Smart lighting system interface : Embedded Internet of Things control cable tray, compatible with smart functions such as LED dimming, remote monitoring, fault alarm.
Multi-scenario expansion capability : Optional camera stand, environmental monitoring sensor, WiFi base station, advertising light box and other modules to achieve "one pole for multiple uses".
Distribution system CUSTOM : Supports top or bottom door design, built-in cable pipe diameter 50-100mm, suitable for different power layout requirements.
Youdaoplaceholder0: offers a variety of styles including streamlined, geometrically cut and bionic design to match the theme of modern city, historical and cultural district, ecological scenic area and more.
Decorative elements add : optional relief, hollowed-out patterns, night view LED decorative light strips to enhance city image value.

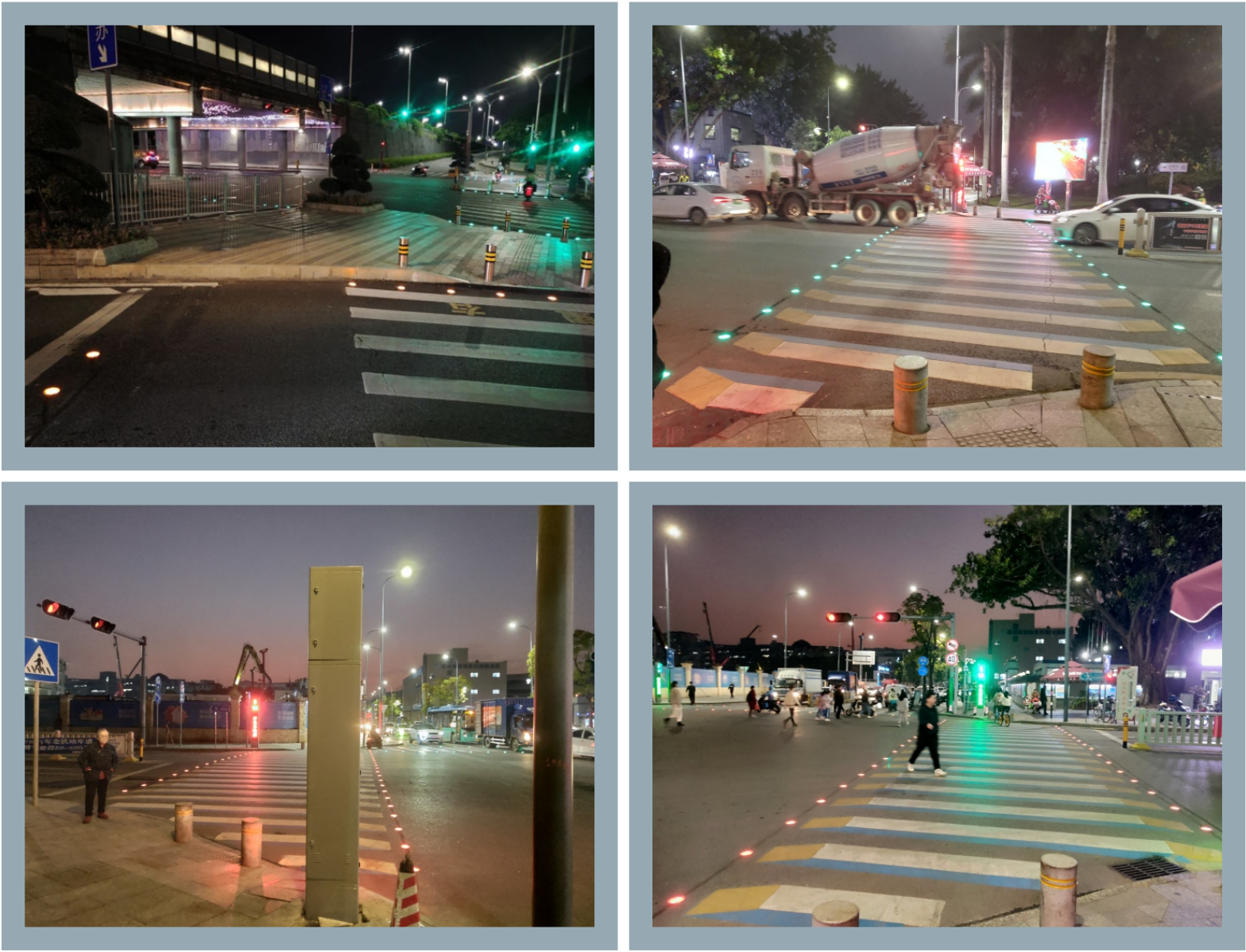

Typical application scenarios
Municipal roads : Wide roads are illuminated without blind spots through tilt optimization
Industrial park : Integrated security surveillance and environmental monitoring functions
Cultural and tourism scenic area : Antique style + low GLARE lighting to protect ecology
Smart Park : New infrastructure with 5G micro base stations and charging stations
We provide full process customization support : Requirements analysis →3D modeling → Wind tunnel testing → sample production → Mass production
Global Delivery : Support for special packaging by sea/land, installation guidance and after-sales response
Customized single-arm street lamp poles are not only lighting carriers but also the neuron nodes in the construction of smart cities. With precise manufacturing techniques and innovative design thinking, we provide customers with full value chain
services ranging from single products to systematic solutions, empowering the efficient, intelligent and humanized upgrading of urban Spaces.
Contact us at : Get customized solutions to make each post a unique sight in the city!
Design of Pole
Production Details
Packing Details
FAQ
1. Q: Are you a factory or trading company?
A: We are factory established for 12 years, specialized in outdoor lights.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Yangzhou City, Jiangsu Province, China, about 2 hours drive from Shanghai. All our clients, from home or abroad, are warmly welcome to visit us!
3. Q: What's your main product?
A: Our main product is Solar Street Light, LED Street Light, Garden Light, LED Flood Light, Light Pole And All Outdoor Lighting
4. Q: Can I try a sample?
A: Yes. Samples for testing quality is available.
5. Q: How long is your lead time?
A: 5-7 working days for samples; around 15 working days for bulk order.
6. Q: What's your shipping way?
A: By air or sea ship are available.
7. Q: How long is your warranty?
A: 5 years for outdoor lights.
